Lab Synchronous Thermal Analyzer

1. The furnace body is heated by double-row winding of precious metal nickel-cadmium alloy wire, which reduces interference and is more resistant to high temperatures.

2. The tray sensor is made of precious metal alloy wire, which has the advantages of high temperature resistance, oxidation resistance and corrosion resistance.

3. The power supply and circulating heat dissipation part are separated from the main machine to reduce the influence of heat and vibration on the micro-thermal balance.

4. Adopt top-opening structure, easy to operate. It is difficult to move the furnace body up to place the sample, and it is easy to damage the sample rod.

SKZ1060 SynchronousThermal Analyzer real video, click here and follow us on Facebook and Youtube. Learn more about thermal analyzer, click here.


  Contact Now
Product Details

SKZ1060 Lab Synchronous Thermal Analyzer


Simultaneous thermal Analyzer STA  is a mixture of differential heating and thermo gravimetric . It can now not solely find out about the exchange of pattern first-rate with temperature or time in the method of heating and regular temperature, however additionally find out about and analyze the technique of the sample, through the warmness generated changes.



Widely used in the science development, procedure optimization and first-class manipulate of plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, steel substances and composite substances



Application range:

Thermal stability, decomposing process, adsorption and desorption, oxidation and reduction, ingredients quantitative analysis, additives and filler influence, moisture and volatiles, reaction kinetics.



Structural advantages:

1. The furnace is heated through double-row winding of treasured metallic nickel-cadmium alloy wire, which reduces interference and is extra resistant to excessive temperatures.
2. The tray sensor is made of valuable steel alloy wire, which has the blessings of excessive temperature resistance, oxidation resistance and corrosion resistance.
3. The energy grant and circulating warmness dissipation phase are separated from the major laptop to limit the affect of warmness and vibration on the micro-thermal balance.
4. Adopt top-opening structure, handy to operate. It is tough to cross the furnace physique up to vicinity the sample, and it is effortless to harm the pattern rod.
5. The host makes use of the warmth insulation of the heating furnace physique to the chassis and micro-thermal balance.
6. The furnace physique can be changed in accordance to consumer necessities


Technical parameters:

Display

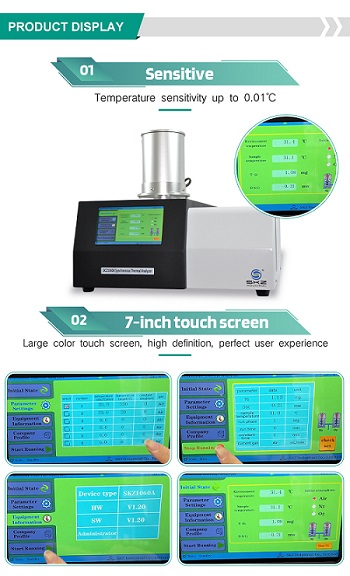

7 inches LCD color screen display

Temperature range

Room temperature ~1150℃(SKZ1060A),

1350℃(SKZ1060B)

1550℃(SKZ1060C)

Temperature resolution

0.01

Temperature fluctuation

±0.1

Heating rate

1 -- 100 C/ min

Temperature control mode

Temperature rise/fall and constant

Constant temperature time

0--300min, Can be set

Cooling time

15min (1000C~100C)

Scale Capacity

1mg---3g  (Optional 10g)

DSC measuring range

0---±500mW

DSC Resolution

0.01uW

Resolution

0.01mg

Constant temperature time

0 --300min Can be set

Atmosphere

Inertia, oxidability, reducibility, static and dynamic

Atmosphere device

Built-in gas flow meter

Software

Professional operating software

Data interface

USB

Power

AC220V  50Hz

Size

500*400*430mm

 Packing List

Host machine

1 set

U DISCK with installation system

1 piece

Power Cord

1 piece

Data line

2 pieces

Sample crucible

100 pieces

10A fuse

5 pieces

Operational   manual

1 piece
